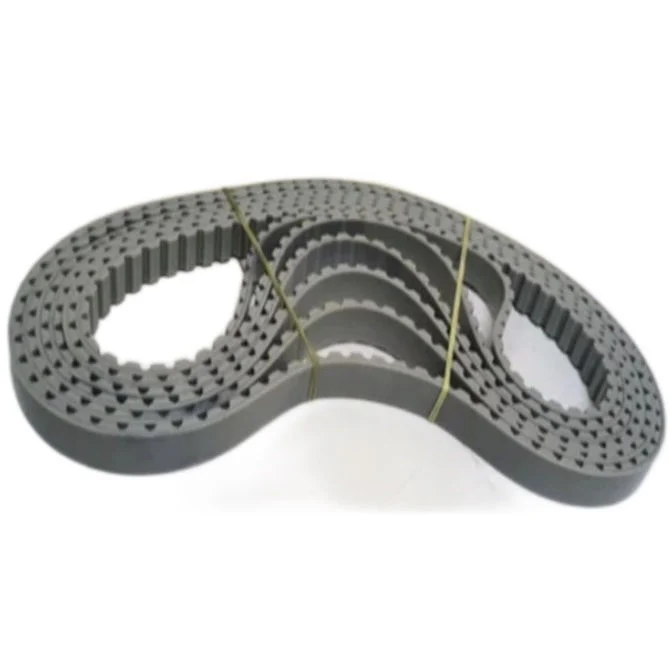

1211641 | B-MXL-0200-0032-PKG (Each) --- Inch Timing Belts - 200 tooth - 406.4x3.2 mm 2.032mm Pitch MXL - Polyurethane with Kevlar Cords Belt

Base Category: Belts - Inch Timing

Top Level Category: Belts - Inch Timing - 2.032mm Pitch MXL - 3.2mm Wide - Standard

Product Details

Deleted Item. Available while stocks last.

Number of Teeth: 200

Polyurethane with Kevlar Cords

• Number of Teeth: 200
• Length: 406.4mm
  _{(406.4mm is 16 in.)}

• Width: 3.2mm
  _{(3.2mm is 0.126 in.)}

• Reinforcement: Kevlar
• Appearance: Grey
• Breaking Strength: 578N
• Min Temperature (C): -18Deg C
• Max Temperature (C): 66Deg C

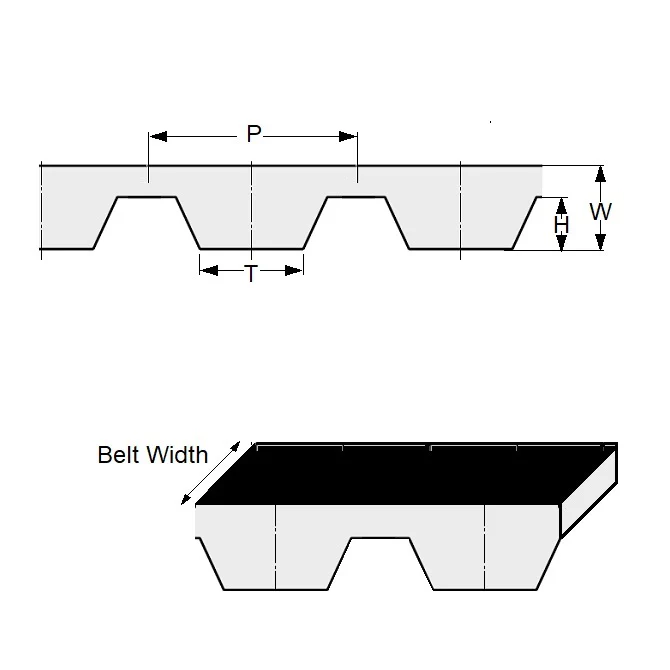

• Tooth Angle (A): 60°

Brand: MBA
Country of Origin: US

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Product Compliance and Data

• Full Data Sheet
• RoHs Statement
• Reach Statement
• CoC Information

Similar to

• Gates® BMXL02000030PK
• A6B16M200030
• A 6B16M200030

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
