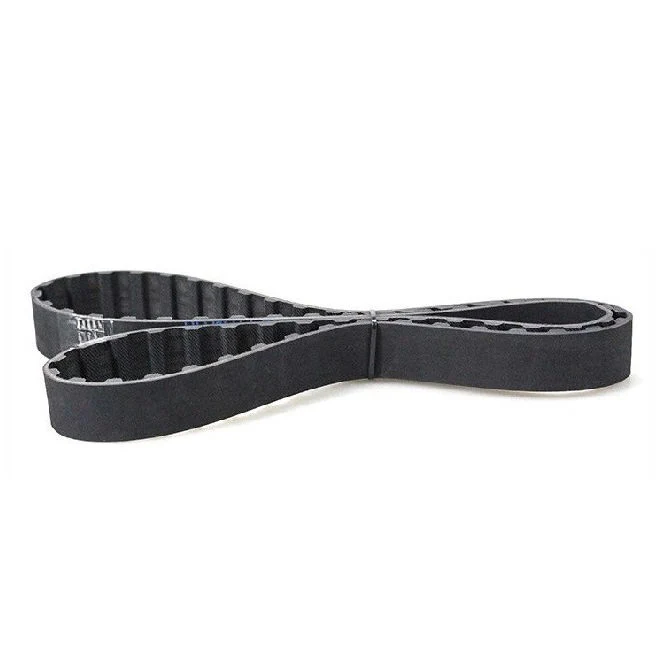

1210197 | B-MXL-0190-0032-NFB (Each) --- Inch Timing Belts - 190 tooth - 386.08x3.2 mm 2.032mm Pitch MXL - Nylon Covered Neoprene with Fibreglass Cords Belt

Base Category: Belts - Inch Timing

Top Level Category: Belts - Inch Timing - 2.032mm Pitch MXL - 3.2mm Wide - Standard

Product Details

Number of Teeth: 190

Nylon Covered Neoprene with Fibreglass Cords

• Number of Teeth: 190
• Length: 386.08mm
  _{(386.08mm is 15.2 in.)}

• Width: 3.2mm
  _{(3.2mm is 0.126 in.)}

• Reinforcement: Fibreglass
• Appearance: Black
• Breaking Strength: 229N
• Min Temperature (C): -34Deg C
• Max Temperature (C): 85Deg C
• Tooth Angle (A): 40°

Brand: MBA
Country of Origin: US

Product Compliance and Data

• Full Data Sheet
• RoHs Statement
• Reach Statement
• CoC Information

Similar to

• Gates® 190MXL012
• Gates® 190MXL013
• ALTPART
• 7887K28
• Gates® BMXL01900030NF
• A6Z16-190012
• A6Z16190012
• A6Z16M190030

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
