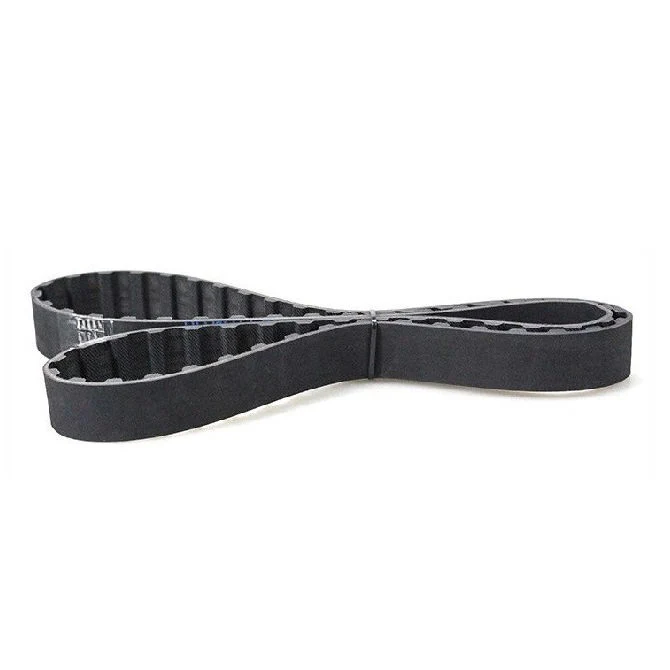

1207325 | B-MXL-0170-0032-NFB (Each) --- Inch Timing Belts - 170 tooth - 345.44x3.2 mm 2.032mm Pitch MXL - Nylon Covered Neoprene with Fibreglass Cords Belt

Base Category: Belts - Inch Timing

Top Level Category: Belts - Inch Timing - 2.032mm Pitch MXL - 3.2mm Wide - Standard

Product Details

Number of Teeth: 170

Nylon Covered Neoprene with Fibreglass Cords

• Number of Teeth: 170
• Length: 345.44mm
  _{(345.44mm is 13.6 in.)}

• Width: 3.2mm
  _{(3.2mm is 0.126 in.)}

• Reinforcement: Fibreglass
• Appearance: Black
• Breaking Strength: 229N
• Min Temperature (C): -34Deg C
• Max Temperature (C): 85Deg C

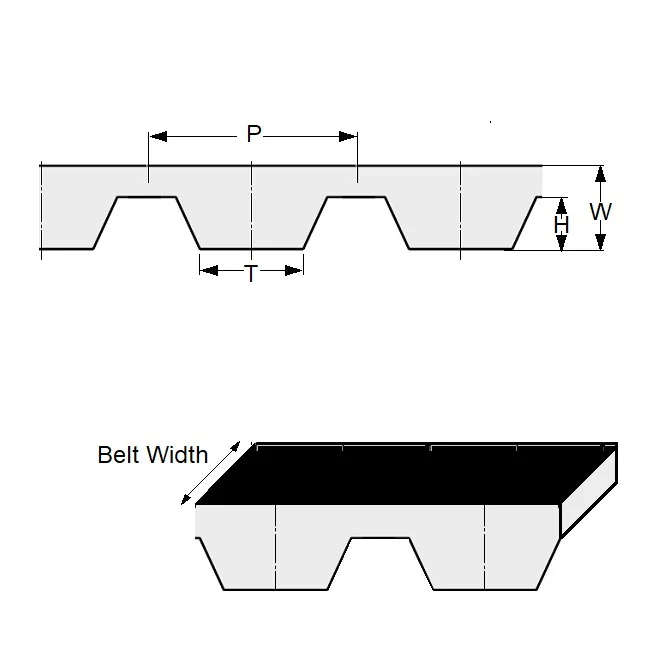

• Tooth Angle (A): 40°

Brand: MBA
Country of Origin: JP

Product Compliance and Data

• Full Data Sheet
• RoHs Statement
• Reach Statement
• CoC Information

Similar to

• Gates® 170MXL012
• Gates® 170MXL013
• Gates® BMXL01700030NF
• A6Z16M170030
• A6Z16-170012
• A6Z16170012

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
