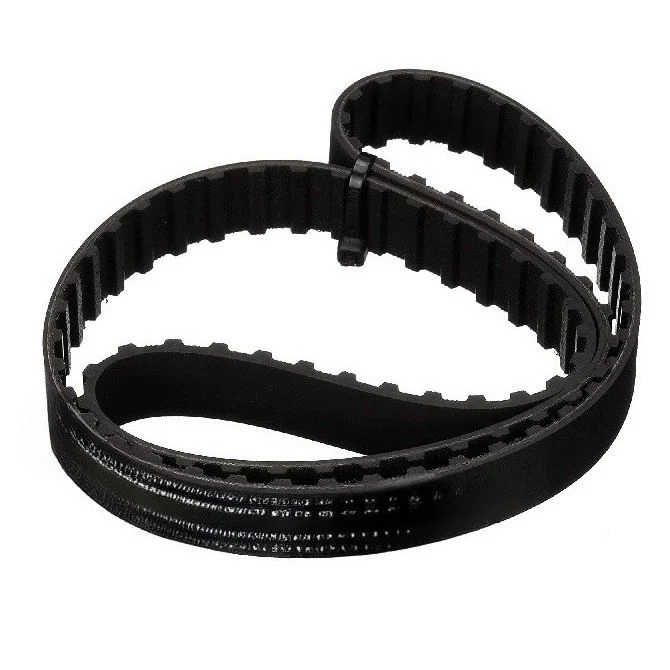

1209723 | B-MXL-0188-0095-NFB (Each) --- Inch Timing Belts - 188 tooth - 382.016x9.5 mm 2.032mm Pitch MXL - Nylon Covered Neoprene with Fibreglass Cords Belt

Base Category: Belts - Inch Timing

Top Level Category: Belts - Inch Timing - 2.032mm Pitch MXL - 9.5mm Wide

Product Details

Number of Teeth: 188

Nylon Covered Neoprene with Fibreglass Cords

• Number of Teeth: 188
• Length: 382.016mm
  _{(382.016mm is 15.04 in.)}

• Width: 9.5mm
  _{(9.5mm is 0.374 in.)}

• Reinforcement: Fibreglass
• Appearance: Black
• Breaking Strength: 684N
• Min Temperature (C): -34Deg C
• Max Temperature (C): 85Deg C

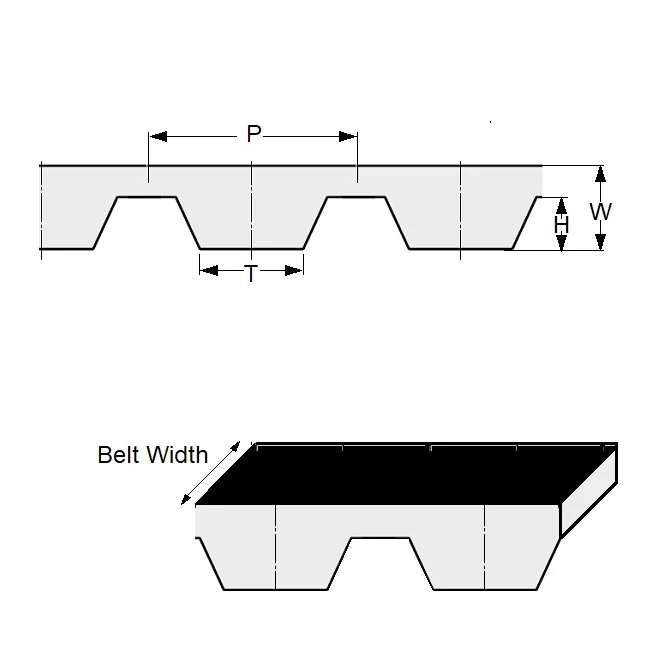

• Tooth Angle (A): 40°

Brand: MBA
Country of Origin: US

Product Compliance and Data

• Full Data Sheet
• RoHs Statement
• Reach Statement
• CoC Information

Similar to

• Gates® 188MXL037
• Gates® BMXL01880095NF
• A6Z16M188095
• A6Z16188037
• A6Z16-188037

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
