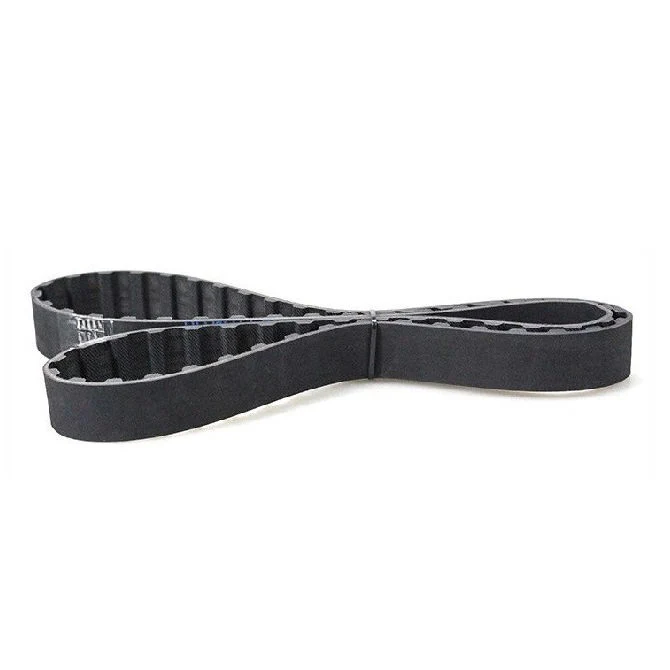

1207997 | B-MXL-0175-0064-NFB (Each) --- Inch Timing Belts - 175 tooth - 355.6x6.4 mm 2.032mm Pitch MXL - Nylon Covered Neoprene with Fibreglass Cords Belt

Base Category: Belts - Inch Timing

Top Level Category: Belts - Inch Timing - 2.032mm Pitch MXL - 6.4mm Wide - Single Sided

Product Details

Number of Teeth: 175

Nylon Covered Neoprene with Fibreglass Cords

• Number of Teeth: 175
• Length: 355.6mm
  _{(355.6mm is 14 in.)}

• Width: 6.4mm
  _{(6.4mm is 0.252 in.)}

• Reinforcement: Fibreglass
• Appearance: Black
• Breaking Strength: 457N
• Min Temperature (C): -34Deg C
• Max Temperature (C): 85Deg C

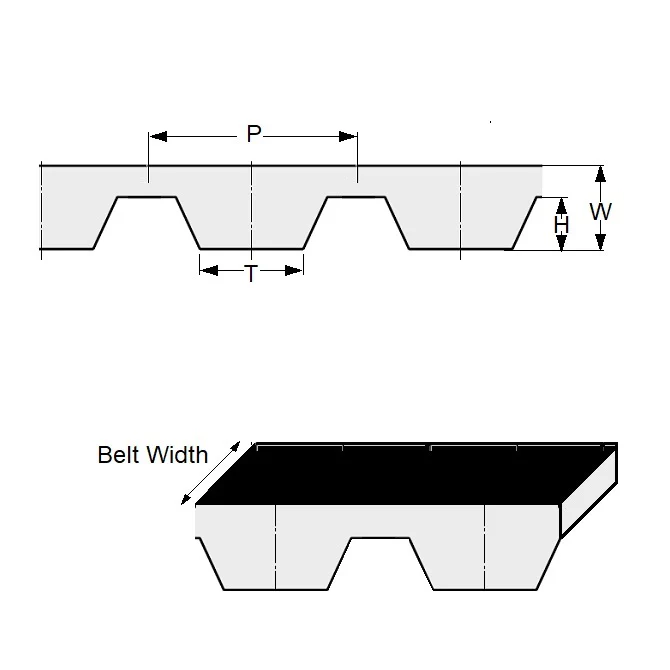

• Tooth Angle (A): 40°

Brand: MBA
Country of Origin: JP

Product Compliance and Data

• Full Data Sheet
• RoHs Statement
• Reach Statement
• CoC Information

Similar to

• Gates® 175MXL025
• ALTPART
• 7887K86
• Gates® BMXL01750060NF
• Misumi® C-TBN175MXL025
• A6Z16175025
• A6Z16-175025
• A6Z16M175060
• CTBN175MXL025

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
