1122727 | G010K-020-M05-080-040-CG (Each) --- Spur Gears - 20 tooth - 10x4 mm Hubbed - Carbon Steel Gear

Base Category: Gears - Spur

Top Level Category: Gears - Spur - Hubbed - Module 0.5 - Steel

Product Details

Number of Teeth: 20

Carbon Steel

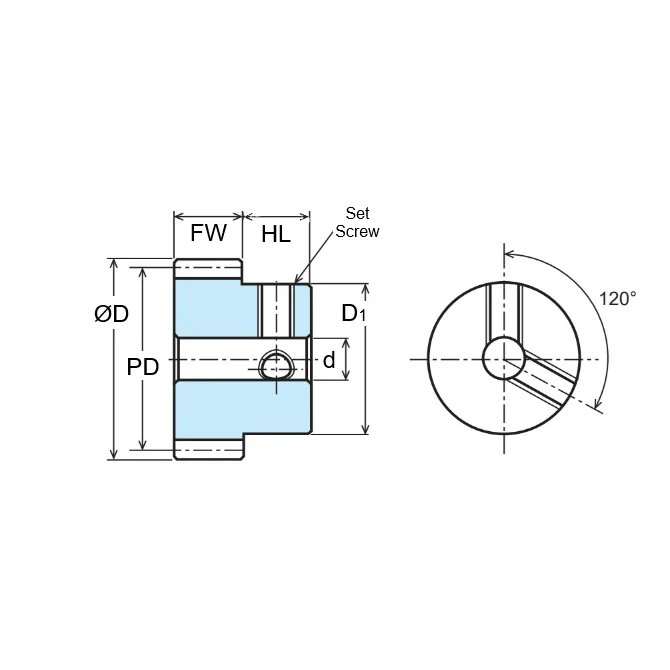

• Number of Teeth: 20
• Pitch Circle Diameter (PD): 10.00mm
  _{(10.00mm is 0.394 in.)}

• Bore (d): 4.000mm
  _{+0.022 / -0.00 (H8)
  (4.000mm is 0.157 in.)}

• Outside Diameter (OD): 11.000mm
• Face Width (FW): 8.000mm
• Type: K Hub
• Hub Diameter (D1): 11.000mm
• Hub Projection (HL): 10.000mm
• Locking Method: Set Screws M3 (2x120 Deg)
• Quality: ISO 8 - ( AGMA 9 )

Brand: MBA
Country of Origin: JP

Product Compliance and Data

• Full Data Sheet
• RoHs Statement
• Reach Statement
• CoC Information

Similar to

• G010K20M05080040CG
• A1C2MYK050020

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
