1081124 | S688A-ZZ-MC4-AF12 (PK-100) --- Single Row Ball Bearings - 8x16x5 mm Unflanged - Stainless Steel AISI 440C Bearing
1081124 | S688A-ZZ-MC4-AF12 (PK-100) --- Single Row Ball Bearings - 8x16x5 mm Unflanged - Stainless Steel AISI 440C Bearing
Base Category: Bearings - Single Row Ball
Top Level Category: Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless
Product Details
Double shielded standard stainless steel bearing with low-torque retainer and light oil lubricant
ID (d): 8.000mm
+ 0.000 / - 0.0075
(8.000mm is 0.315 in.)
Stainless Steel AISI 440C

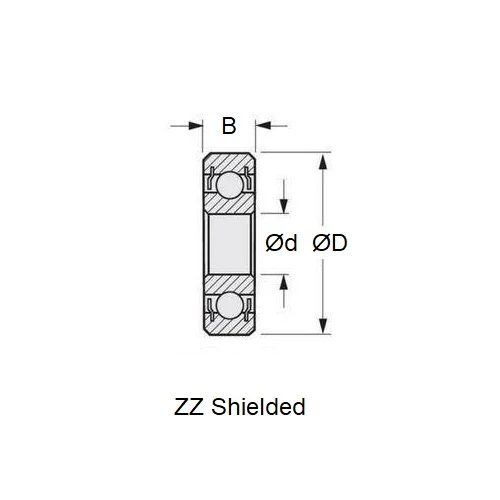

- ID (d): 8.000mm
+ 0.000 / - 0.0075
(8.000mm is 0.315 in.)
- O.D. (D): 16.000mm
+ 0.000 / - 0.0075
(16.000mm is 0.63 in.)
- Width (B): 5.000mm
+ 0.000 / - 0.125
(5.000mm is 0.197 in.)
- Precision Grade: Abec 1
- Closure Type: ZZ
- Bearing Type: Radial
Brand: MBA
Country of Origin: JP
Product Compliance and Data
Similar to
- ISO S688ZZMC4AF2
- ISO S688-ZZMC4-AF2
- ISO SS688ZZMC4AF2
- ISO SS688-ZZMC4-AF2
- 688A
- 688ABASIC
Used for
- Fishing Reel Parts
- Daiwa® - 3500 - 4000 - Bearing 8-16-5mm
- Daiwa® - Jupiter Series - Bearing 8-16-5mm
- Daiwa® - Regal Series S - X - Z - Bearing 8-16-5mm
- Duro® - 0.040 inch Line Game Reel - Handle Bearing 8-16-5mm
- Duro® - 0.040 inch Line Game Reel - Spool Bearing 8-16-5mm
- Jarvis Walker® - 3500 Ultra Power Long Cast - Spool Bearing 8-16-5mm
- Jarvis Walker® - Freespooler 4000 - Handle Bearing 8-16-5mm
- Jarvis Walker® - Freespooler 4000 - Spool Shaft Bearing 8-16-5mm
- Penn® - 330 GTI - Main Pinion Bearing 8-16-5mm
- Penn® - 4400-SS - Main Gear Bearing 8-16-5mm
- Penn® - 4400-SS - Rotor Bearing 8-16-5mm
- Shakespeare® - 0.040 inch Line Game Reel - Handle Bearing 8-16-5mm
- Shakespeare® - 0.040 inch Line Game Reel - Spool Bearing 8-16-5mm
- Shina® - 5X800 - Bearing 8-16-5mm
- Tica® - Arief / GR4000H / GR4500H / GR4000HBH - Spool Bearing 8-16-5mm
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
