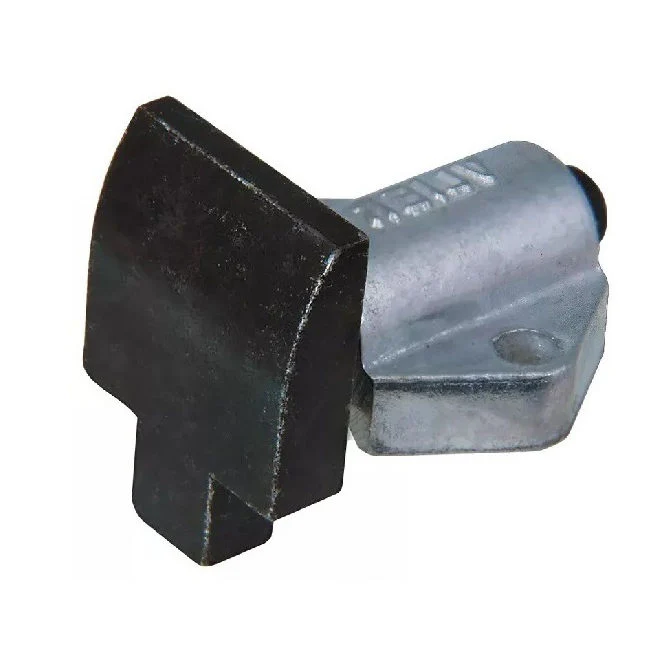

1041051 | DS-4RS (Each) --- Spring Stops - 2.33 Kg - 6.61 Kg - 3.18 mm Flat Face
Base Category: Stops - Spring
Top Level Category: Stops - Spring - Flat Face - With Tang
Product Details
Initial End Force: 2.33Kg- Initial End Force: 2.33Kg
- Final End Force: 6.61Kg
- Stroke: 3.18mm
(3.18mm is 0.125 in.)

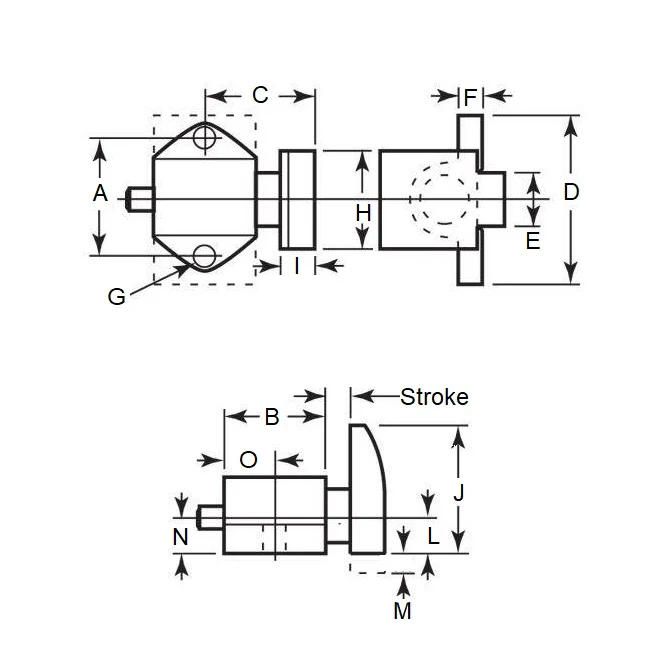

- A: 16.67mm
- B: 17.46mm
- C: 16.67mm
- D: 22.23mm
- F: 4.76mm
- G: No.29mm
- H: 15.88mm
- E / I / J / L / M / N / O: 6.35 / 4.76 / 15.88 / 5.16 / 6.35 / 5.56 / 8.73mm
- Base Style: Trianglular
Brand: MBA
Country of Origin: US
Product Compliance and Data
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
